P.T KAHAJAYA MARINE

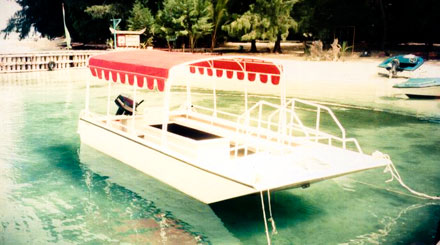

GLASS VIEW BOAT

Specification
Length : 6.40 m
Beam : 2.40 m
Height : 0.80 m
Draft : 0.20 m
Weight : 885 kgs
Power max. : 100 Hp
Hull Bottom : 5.0 mm
Sides : 3.0 mm
Transom : 4.0 mm
Stringers & Scantlings : 4-5 mm
Deck / floor : 15 mm plywood

Standard features
Marine aluminium alloy plate fully welded construction by M.I.G process
Fwd bow hand rails for mounting /dismounting
Fwd anchor storage below fore deck
12mm tempered glass viewing panel / within aluminium box
Aft duck boards
4 x 17mm plastic drain plugs aft
Buoyancy foam under floor
Maximum side seating .(14 pax.)
15 mm plywood floor fibre glassed and vinyl covered
Aft battery storage
2 x forward bollard , 2 x aft mooring cleats
Full sun canopy fixed
Boat painted one colour (white)

Optional Extras
Pu buoyancy foam injected under decks
Boat anti fouled nipsea (red)
Folding ladder

Engine
85hp ,2 or 4 stroke ,electric power trim ,tilt
Manual book
25ltr plastic fuel tank
Hour ,trim ,tacho , speedo gauges
Toolkit
