P.T KAHAJAYA MARINE

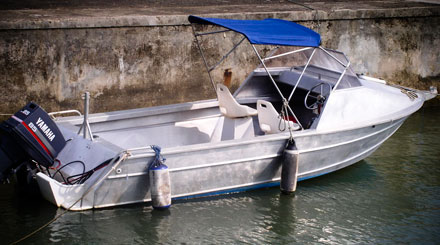

FISHERMAN

Specification
Length : 5.30 m
Beam : 2.00 m
Height : 0.65 m
Draft : 0.25 m
Weight : 350 kgs
Power max. : 70 - 85 Hp
Hull Bottom : 3.0 mm
Sides : 3.0 mm
Transom : 3.0 mm
Transom bottom : 4.0 mm
Out board bracket : 4.0 mm
Stringers & Scantlings : 3.0 mm
Fore deck cabin : 3.0 mm
Floor : 3.0 mm

Standard features
Marine aluminium alloy plate fully welded construction by M.I.G process
Bow rail, fairlead and roller
Forward bollard & aft hand rails
Folding Ladder & duck board
Fwd self draining anchor well
Windscreen 3 mm acrylic
2 x pedestal forward seats
17mm plastic drain plug aft
15 mm Plywood floor fibre glassed and vinyl covered
Under floor fuel tank 70 ltrs
Buoyancy foam under floor
Boat painted (one colour)

Optional Extras
Fold down sun canopy
2 x Aft Cleats
Ice box /seat

Engine
70 - 85 hp ,2 or 4 Stroke , electric trim ,tilt
25ltr Plastic Fuel Tank
Manual book
Toolkit
