P.T KAHAJAYA MARINE

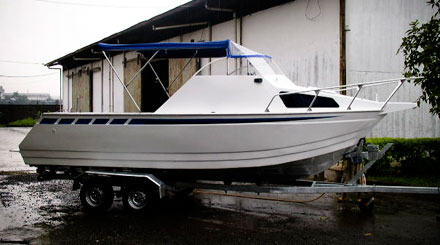

CUDDY CABIN

Specification
Length : 6.00 m
Beam : 2.35 m
Height : 0.80 m
Draft : 0.35 m
Weight : 575 kgs
Power max. : 230 Hp
Hull Bottom : 4.0 mm
Sides : 3.0 mm
Transom : 4.0 mm
Stringers & scantlings : 4.0 mm
Outboard Bracket : 6.0 mm
Cabin : 3.0 mm

Standard features
Marine aluminium alloy plate fully welded construction by M.I.G process
15 mm Plywood floor fibre glassed and vinyl covered
Self draining anchor well.
Windscreen 3 mm acrylic
2 fwd pedestal seats
Fwd vee berth
Upholstered & lockable cabin
Fwd bollard, 2 x aft mooring cleats
Bow rail, fair lead & roller.
Aft duck boards
Fuel capacity 140 ltrs.
Ice box with seating on top.
Buoyancy foam under floor
Painted ( one colour ) white)

Optional Extras
Boat painted
Fold down sun canopy
Folding ladder
Aluminium targa top
Seats &seating arrangement

Engine
2 x 115 or 200hp ,2 or 4 Stroke ,electric , power trim ,tilt
Manual book
Toolkit
